Product

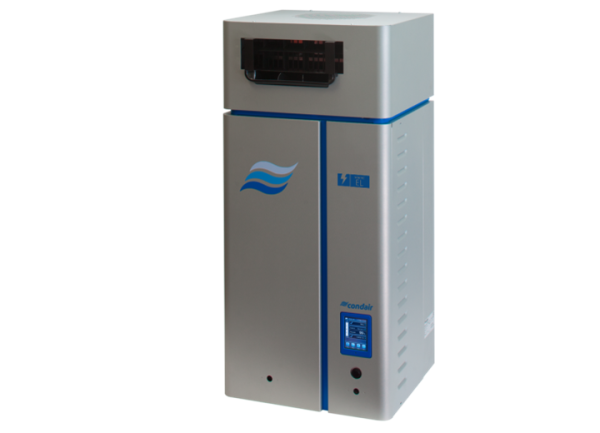

EL Series – Electrode Steam Humidifier
Short Description
The Condair EL Series Electrode Steam Humidifiers deliver reliable and cost-effective humidification for commercial and industrial settings, with steam output ranging from 5 to 200 lbs/hr.
Featuring simplified maintenance, users can easily replace the electrode cylinder to ensure consistent humidity control.
With advanced touchscreen controls and BMS compatibility, the EL Series offers flexible, precise, and remote monitoring for optimal operation.
Description
Trusted Performance for Over 40 Years
The Condair EL Series Electrode Steam Humidifiers deliver dependable, flexible humidification solutions for commercial and industrial applications. Engineered to meet the needs of systems engineers, contractors, and end users, these units can be integrated into central HVAC systems or installed for standalone room control. With models providing steam output from 5 to 200 lbs/hr, the EL Series is suitable for both small and large spaces.
Why Choose Electrode Steam Humidifier Technology?
Electrode steam humidifiers offer a cost-effective, simple, and reliable solution for in-duct or direct room humidification. The EL Series provides excellent value with a low capital investment while maintaining high standards of hygienic steam production and operational reliability.
Simplified Maintenance
Maintenance is quick and easy. When the humidifier detects that the cylinder is full of scale, it notifies the user to replace it. This involves simply draining the unit, removing the used cylinder, and installing a new one. This straightforward process minimizes downtime and ensures consistent humidity control.
How It Works
The EL Series uses an electrode-based heating system that produces steam from regular drinking water, eliminating the need for additional water treatment. The humidifier automatically adapts to varying water quality, optimizing performance and minimizing water usage. The special electrode grid design maximizes surface area for efficient power transfer, ensuring reliable steam production and extended operating life.
Precision Control
All EL Series humidifiers feature an advanced touchscreen controller for precise and efficient humidity regulation. Units can be controlled via a humidistat, relative humidity sensor, or connected to a central Building Management System (BMS) for maximum flexibility.
Remote Monitoring Made Easy
Every EL unit includes built-in BMS compatibility, allowing for remote monitoring and control. For installations with multiple units, the system’s networking capabilities provide a comprehensive overview and enable quick responses for enhanced operational reliability.
WHY CHOOSE THE EL SERIES?
- Intuitive touch screen control
- Standard building automation support with integrated BACnet
- USB port for performance downloads
- SIM card storage of all operational information and user changes
- New cabinet design and smaller footprint
- Zero unit side clearance
