Product

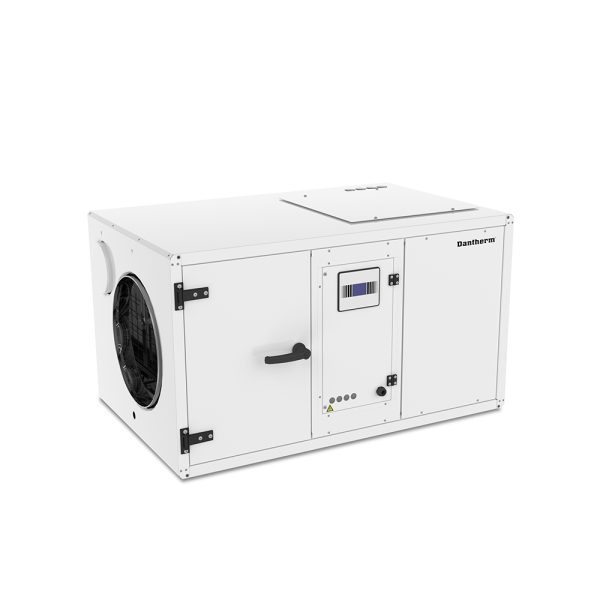

Dantherm CDP 135 – ducted swimming pool and commercial dehumidifiers
Short Description
The Dantherm CDP 135 is a powerful ducted dehumidifier designed for hotel, private, and therapy pool halls, removing up to 222L daily.
It features durable, corrosion-protected construction, a built-in CC6 touch screen controller, and Modbus connectivity for smart management.
Ideal for technical room installation, it delivers high efficiency, flexible airflow options, and quiet, reliable performance.
Description
The CDP 135 ducted condensation dehumidifiers are specifically designed for hotel, private, and therapy swimming pool hall dehumidification. They offer a great moisture removal per kWh, high durability, and efficient self-regulation. They are ideal for installation in an adjacent technical room.
All metal parts and internal surfaces are powder coated before assembly and evaporator and condenser coils are made ofepoxycoated aluminium. The corrosion protection is in accordance with EN/ISO 12944-2, class C4.
The range is equipped with the Dantherm CC6 controller which comes with an integrated 2.4” touch screen for easy user customisation of setpoints and visualisation of operational variables.
View other swimming pool dehumidifiers or see our full range of commercial and industrial dehumidifiers suitable for multiple applications.
Key features
- EC centrifugal constant flow fan
- User specified low and high air volume
- R454C refrigerant with GWP of 148
- Movable inspection access
- Outdoor air inlet possibility (15%) through duct connection
- Supply air duct either horizontally or vertically connected
- Microchannel condenser
- Integrated control of exhaust fan and/or outdoor air damper
- Heat- and cooling demand regulation
- Datalogging and software update via supplied microSD card
- Compact unit designed to suit any plant room configuration
- Sandwich cover panels with 45mm insulation
- Optional water-cooled condenser
- Three setpoint specified control modes – relative, absolute, or dew point
- Modbus RTU (RS485)
Product specifications
| Specifications | Units | CDP 135 |
|---|---|---|
| Operating temperature range |
°C
|
15-38
|
| Operating humidity range |
% RH
|
40-95
|
| Air flow, nominal |
m³/h
|
2,500
|
| Air flow, range |
m³/h
|
1,200-2,500
|
| Dehumidification capacity @ 30°C/60% RH |
l/24h
|
155
|
| Dehumidification capacity @ 20°C/60% RH |
l/24h
|
75
|
| Dehumidification capacity @ 30°C/60% RH |
l/24h
|
222 |
| Specific Energy Consumption (SEC) |
kWh/l
|
0.39 |
| Specific Energy Consumption (SEC) |
kWh/l
|
0.58 |
| Max. external pressure loss |
Pa
|
350
|
| R454C gas weight/CO₂ equivalent |
kg/t
|
1.5/0.22
|
| Power supply |
V/Hz
|
230/1ph/50 400/3ph/50
|
| Power consumption, nominal air flow |
kW
|
3.3
|
| Current, max. |
A
|
16.1/ 5.7
|
| @ 20°C/60% |
kW
|
1.9
|
| @ 30°C/60% |
kW
|
2.8
|
| Maximum |
kW
|
3.3
|
| Product size (w x d x h) |
mm
|
1300 x 900 x 850
|
| Weight (w/o water-cooled condenser) |
kg
|
230
|
| Colour |
RAL 9016
|
